DLWH-CableSet-DLWHm-M12m
Adapter cable set for M12 components
The adapter cable set DLWH CableSet-DLWHm-M12M allows an easy connection of system components with M12 connector on your DataLog Wireless Hydro with push-pull connectors.
The adapter cable set not only makes the connection between your DataLog Wireless and your ADCP-head with M12 connector, but also allows you to join more M12 components such as a GNSS receiver at the second data port of your DataLog Wireless Hydro. It is not just the data connection "passed", but it is also the operating voltage, eg for your GNSS receiver, provided. This reduces the number of cables required. Due to the consequent lower probability of failure, you can benefit from a higher availability of your entire system.

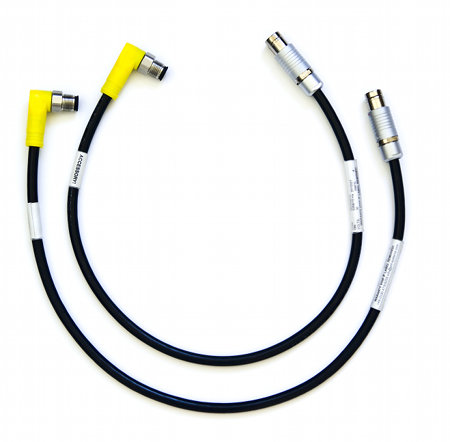

Product Images
System Requirements
DataLog Wireless Hydro or DataLog Wireless Hydro XR, Push-Pull connector version
Technical Data
| Power Requirements |
10-20V DC (optimal working at 12V DC)
max. 500mA |
| Environmental Conditions |
| Temperature: 0-60 °C / 32-122 °F |
| Dimensions |
| Length: approx. 0.5 meter |
|
| Interfaces |
| RS-232 (TxD, RxD, no flow control) |
| Connectors |

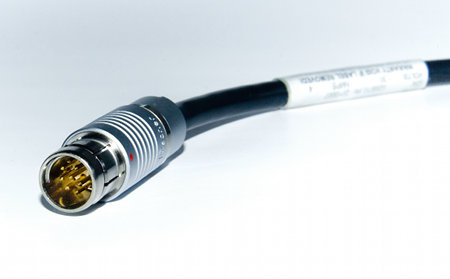

1 Circ. PP Conn. 11 pins, male, ADCP -

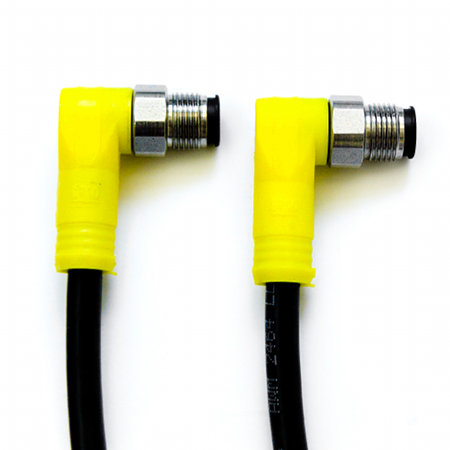

1 Circ. PP Conn. 8 pins, male, M12
1 Circ. PP Conn. 11 pins, male, ACCES. -
1 Circ. PP Conn. 8 pins, male, M12
|
|
up
Odering Information
| Article |
DLWH-Cable-Set-DLWHm-M12m
SKU: 030102050
|
|
| Short Description |
| Adapter cable set for M12 components, 2x 0.5m, RS-232 (TxD, RxD, no flow control), Power 12V DC |
|
up
