DLWH-Cable-TRI-SPSx51
Adapter cable for GNSS receiver from Trimble
The adapter cable solution DLWH-Cable-TRI-SPSx51 allows the easy connection of a GNSS receiver from Trimble SPSx51 and Rx series.
The adapter cable not only makes the data connection between your wireless and DataLog your Trimble GNSS receiver, but also allows you to support it with the necessary operating voltage supply. This reduces to the conventional solution the number of required cables. Due to the consequent lower probability of failure you benefit from a higher availability of your entire system.

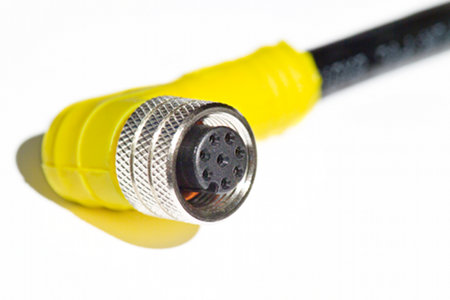

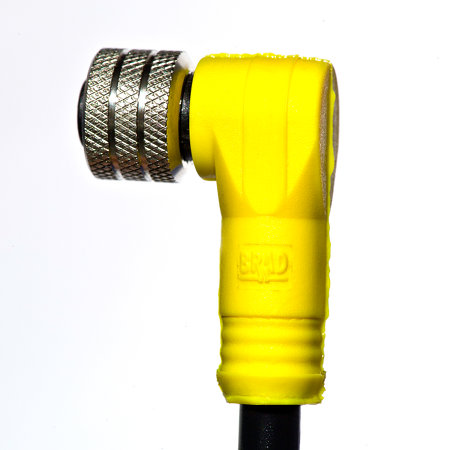

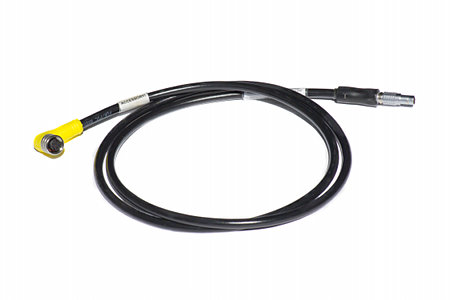

Product Images
System Requirements
DataLog Wireless Hydro or DataLog Wireless Hydro XR, Push-Pull or M12 connector version, Trimble GNSS system SPSx51 or Rx series
Technical Data
| Power Requirements |
10-20V DC (optimal working at 12V DC)
max. 500mA
|
| Environmental Conditions |
| Temperature: 0-60 °C / 32-122 °F |
| Dimensions |
Length: approx. 1.0 meter
|
|
| Interfaces |
| RS-232 (TxD, RxD, no flow control) |
| Connectors |
1 Circular Push-Pull Connector 11 circuits, male, DLWH Power/ Data or
1 Circular M12 Connector 8 circuits, female, DLWH Power/ Data
1 Circular Push-Pull Connector 7 circuits, male, Trimble TRI Power/Data
|
|
up
Ordering Information
| Article |
DLWH-Cable-TRI-SPSx51-PP-1.0
SKU: 030102021
|
DLWH-Cable-TRI-SPSx51-M12-1.0
SKU: 030102023
|
|
| Short Description |
Adapter cable for GPS receiver from Trimble, 1x 1.0m, RS-232 (TxD,
RxD, no flow control), Power 12V DC, Push-Pull version
|
Adapter cable for GPS receiver from Trimble, 1x 1.0m, RS-232 (TxD,
RxD, no flow control), Power 12V DC, M12 version |
|
